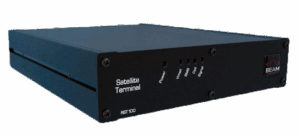

RemoteSAT (RST100)

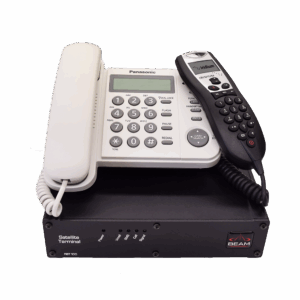

RemoteSAT satellite terminal combines the robust design with the intelligent technology to support RJ11 / POTS, voice and data services over the Iridium satellite network. The RemoteSAT terminal is equipped with a range of interfaces to support the use of standard corded/cordless phones or integrated PABX communications. RemoteSAT also gives the option to access voice services using a compact intelligent user handset. RemoteSAT satellite terminal is capable of presenting dial, busy and ring tones to suit country specific requirements as well as auto-dial or restricted dial functionality. It also supports access to the complete range of data services provided by…

[ Consultoría Sin Costo ]

Llame 55 8851 8727 México

México Satélites

Telefonía Satelital

Internet Satelital

Radios Satelitales

RemoteSAT (RST100)

Connectors / Interfaces
Intelligent Handset	RJ45 DPL BUS
Telephone / POTS	RJ-11 2 -wire / TN12 or 600 ohm
Data Port	RS232 Serial Interface
Log Port	RS232 Serial Interface
Power	2 Pin screw type

Kit Contents
Mounting Brackets	x
DC 1.5m Power Cable	x
RST100 Main terminal	x
Commands, Manuals	x
CD – Beam Management System, AT	x
User & Installation Manual	x
Data Cable	x
110-240V AC Plug Pack	x

Environmental Specifications
Corrosion	40 °C with 90% – 95% relative humidity after 2h salt spray
Vibration	2 Hz – 13.2 Hz & 13.2 Hx – 100 hz
Operating Range	-15 to +55°C	+5 to +131°F
Storage	-30 to +70 °C	-22 to 158°F
Humidity	93% non condensing

Power Specifications
Standby	0.35	0.16
Transmit – inc handset	0.59	0.29
Standby – inc handset	0.47	0.22
Power Consumption (AMPS)	12 V DC	24 V DC
Power Input Voltage	11 – 32 V DC
Transmit	0.51	0.25

Physical Specifications
Outer Box Dimensions	330 W x 430 D x 95 H (mm)	13 W x 16.93 D x 95 H (inches)
Box Weight	4.22 kg	9.30 lbs
Weight – lbs	4.9	7.1
Dimensions – inches	8.9 x 10.9 x 2.1	15.7 x 12.8 x 3.5
Dimensions – mm	Unit only 225 x 277 x 53	Packed 400 x 325 x 90
Weight – kg	2.25	3.25
